A deck is only as strong as the timber you can’t see once the boards are down. If you’re building on the heavy clay soil common across Mid Essex, using standard C16 timber for your sub-frame is a risk that often leads to structural failure within a decade. At Essex Board & Timber, we know that the damp UK climate demands a higher specification to prevent the warping and rot that ruins outdoor spaces. You want a project that stands firm for 20 years, not one that bounces or bows underfoot after the first winter.
Choosing the right decking joists c24 braintree is the most critical decision you’ll make for your build. We agree that navigating structural grades can be confusing, but the superior density and load-bearing capacity of C24 timber are non-negotiable for professional-grade results. This guide explains why C24 graded timber is the essential choice for local projects and provides the exact joist spacing required for a rock-solid finish. You’ll also learn how our independent yard supports your project with reliable local delivery and the expert technical advice you expect from a long-standing Braintree merchant.
Key Takeaways
- Understand why C24 graded timber is the superior structural choice over C16 for achieving longer spans and higher load-bearing capacities in your decking project.
- Learn how to mitigate the effects of Braintree’s heavy clay soil by implementing specific joist spacing and sub-frame techniques for your decking joists c24 braintree.
- Discover the critical role of UC3 and UC4 pressure treatments in ensuring your timber sub-frame survives the damp and variable Essex climate.
- Gain a practical step-by-step guide to calculating material quantities and setting out a perfectly square perimeter for a professional-grade finish.
- See why sourcing from an independent merchant like Essex Board & Timber offers better stock availability and technical expertise than national retail chains.
Why C24 Decking Joists are the Standard for Braintree Projects
When planning a timber structure in Essex, selecting the right material is the difference between a project that lasts and one that fails prematurely. For professional builders and serious DIYers, decking joists c24 braintree projects rely on are the benchmark for quality. C24 is a premium structural softwood grade, offering superior strength compared to the more common C16 alternative. At Essex Board & Timber, we stock a wide range of these joists, primarily in 47mm thicknesses, which are often referred to by their traditional 4×2 and 6×2 dimensions.
The structural integrity of a deck depends entirely on its subframe. Because Braintree experiences an average annual rainfall of approximately 600mm, all external timber must be pressure treated to withstand the elements. We supply joists treated to UC3 or UC4 standards. This industrial process forces preservative chemicals deep into the wood fibres, protecting against rot and fungal decay. Local builders prioritise C24 because it features a higher density and significantly fewer knots than lower grades, ensuring a more predictable and stable build for any outdoor space.
Understanding Structural Grading
Timber is assessed based on its strength, elasticity, and density. The Timber strength grading system ensures that every piece of wood meets specific safety requirements for construction. Before arriving at our yard, these joists undergo kiln-drying. This process reduces the moisture content to below 20 percent; this minimizes the risk of warping or twisting after installation. C24 timber is the industry standard for load-bearing decking.
- Density: C24 timber is grown more slowly in colder climates, resulting in tighter grain patterns.
- Defects: Strict grading rules mean C24 has fewer splits, shakes, and knots than C16.
- Consistency: Builders at Essex Board & Timber prefer it because it provides a straighter, more reliable edge for fixing deck boards.
The Local Case for C24
Braintree’s climate, characterized by fluctuating humidity and damp winters, requires a stable timber grade to prevent structural movement. Using C24 Treated Timber provides the necessary resilience for long-term projects. Essex Board & Timber recommends this grade for any installation intended to last 25 years or more. Our trade customers find that the increased load-bearing capacity allows for wider spans between supports. This often reduces the total number of decking joists c24 braintree installers need for a single project by 15 percent compared to C16 alternatives, saving both time and labour costs during the initial build phase.

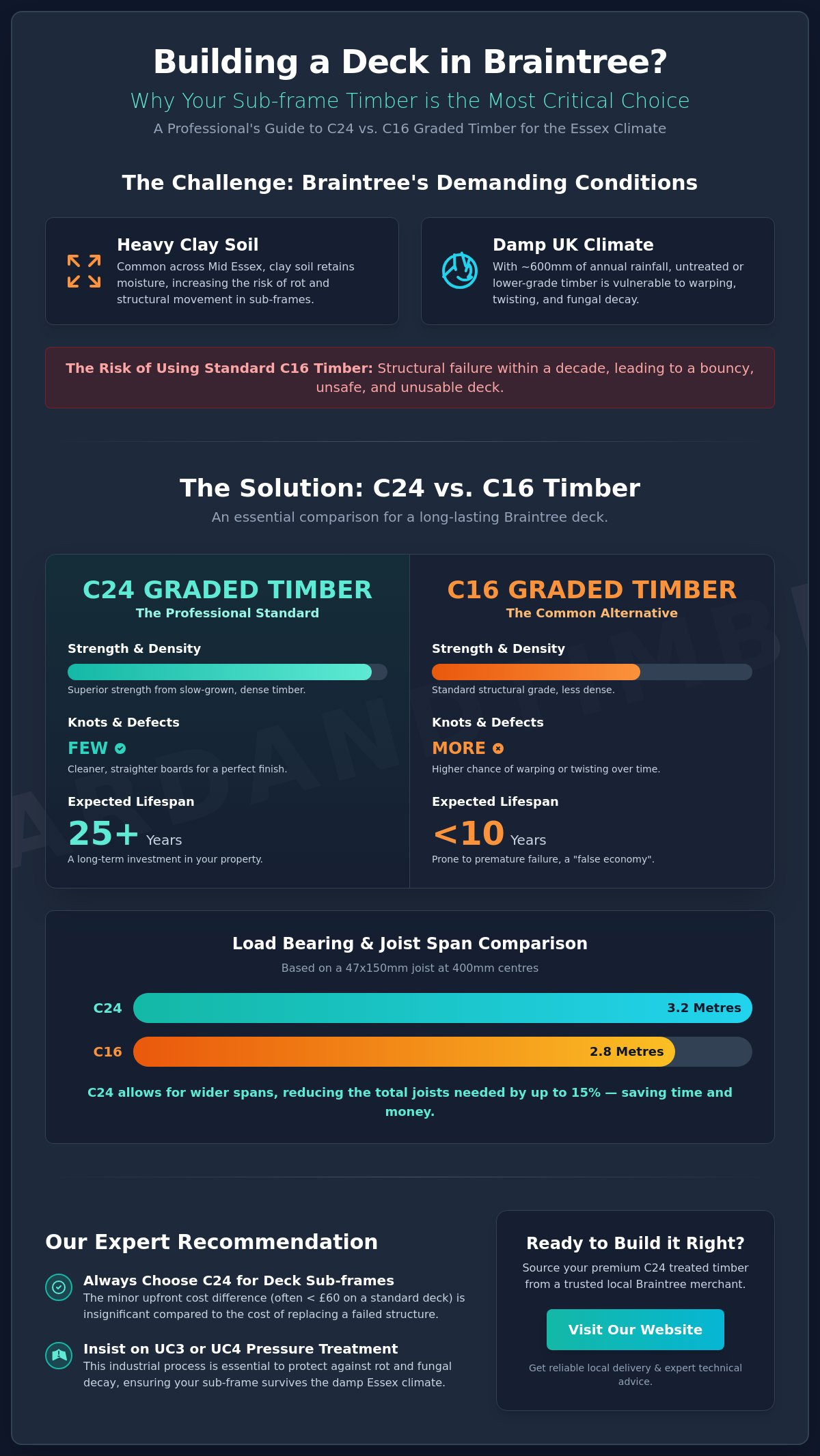

C24 vs C16: Choosing the Right Grade for Essex Weather
Choosing between C16 and C24 timber is the most critical decision you’ll make for the longevity of your project. While C16 is a standard structural grade often found in DIY sheds, Essex Board and Timber consistently recommends C24 for outdoor applications. C24 timber is grown in colder climates where the trees grow slower, resulting in a tighter grain and significantly fewer knots. This higher density is vital when installing decking joists c24 braintree projects, as it provides the structural resilience needed to withstand the unpredictable UK climate.
The visual difference is immediate. C24 looks cleaner and more uniform, but the real benefit lies beneath the surface. For a standard 4m x 4m deck in Braintree, the cost difference between C16 and C24 typically amounts to less than £50 or £60. When you consider the total investment in high-quality deck boards and labor, opting for the cheaper C16 grade is a false economy. If the sub-frame fails due to warping or rot, the entire structure must be dismantled. Essex Board and Timber stocks a wide range of C24 carcassing timber to ensure your build starts on a solid foundation.
Performance Under Load
C24 timber offers superior load-bearing capacities compared to C16. For example, a 47x150mm C24 joist can safely span approximately 3.2 metres at 400mm centres, whereas a C16 joist of the same size is limited to around 2.8 metres. This increased strength allows for wider spans and fewer support posts, which is a major advantage when dealing with the heavy clay soil common across Braintree gardens. Fewer posts mean less digging and less concrete. To ensure your sub-frame meets the highest safety standards, Essex Board and Timber suggests following the TDCA Code of Practice for raised structures.
Durability in Damp Conditions
Braintree gardens often struggle with drainage during the wet winter months. The high knot frequency in C16 timber creates natural weak points where water can ingress, leading to internal rot that isn’t visible from the outside. C24 softwood features a more consistent cell structure, which allows for more effective and uniform absorption of pressure-treated preservatives. This makes it far more resistant to the fungal decay prevalent in damp Essex environments. For more information on matching your joists with the right surface materials, see our Best Wood for Decking in Braintree guide.
Local tradespeople prefer our regularised C24 timber because the edges are slightly rounded and the dimensions are consistent. This makes levelling the deck much faster and reduces the risk of splinters during the install. If you’re planning a project this season, you can browse our current C24 stock or visit our yard to see the quality for yourself.
Managing Braintree’s Clay Soil: Joist Spacing and Sub-frame Stability
Braintree and the surrounding CM7 postcodes are notorious for heavy clay soil. This ground type holds significant moisture in winter and shrinks during dry Essex summers. Such constant movement puts immense pressure on a sub-frame. If you are installing decking joists c24 braintree, you must account for this ground heave. Without a stable base, your deck will eventually twist or dip. Essex Board and Timber recommends a heavy-duty weed membrane topped with 40mm to 50mm of clean gravel. This setup suppresses growth while allowing water to permeate away from the timber structure.
For most residential projects in the local area, we advise a joist spacing of 400mm centres. While 600mm is technically permissible for certain thicker boards, the shifting nature of Braintree clay makes the narrower 400mm gap a much safer bet for long-term stability. It provides a stiffer surface and significantly reduces the risk of the C24 timber bowing under load. Essex Board and Timber provides the exact lengths required to minimize waste while ensuring your frame remains rigid against soil expansion.
Foundations and Drainage
Ground contact is the primary enemy of timber. To ensure your C24 joists last their full intended lifespan, they shouldn’t sit directly on the soil. We supply concrete pads and adjustable pedestals that lift the frame clear of standing water. Proper drainage is the leading factor in preventing rot across Essex. You must maintain a clear 50mm gap beneath the joists to facilitate constant air-flow. This ventilation dries out the C24 timber after heavy rainfall, adhering to UK building regulations for decking to ensure the structural integrity of the build.
Structural Protection
Even high-quality C24 requires protection at its most vulnerable points. Applying joist tape to the top edge of the timber prevents water from sitting in screw holes or between the joist and the deck board. When you cut your decking joists c24 braintree to size, you must apply an end-grain preservative immediately. This seals the exposed fibres against moisture ingress. For the most robust connections, use heavy-duty Joist Hangers to secure your cross-members. Essex Board and Timber stocks these fixings alongside our full range of carcassing to ensure your project stays level and secure for decades.
Step-by-Step: Preparing Your C24 Decking Sub-frame
Calculating the required quantity of C24 joists for your Braintree site is the first priority. For most domestic projects, we recommend a 400mm centre-to-centre spacing to ensure the structure remains rock-solid underfoot. When you order decking joists c24 braintree from Essex Board & Timber, our team can help you determine exactly how many lengths you’ll need based on your specific dimensions. This precision prevents the common mistake of over-ordering or, worse, running short mid-build.
Setting the perimeter involves more than just laying wood on the ground. You must ensure the frame is perfectly square. A simple 3-4-5 triangle calculation is the most reliable method for site work. Once squared, the ledger board must be secured to the Essex brickwork. Always use a 10mm spacer between the timber and the wall to allow water to run off. This prevents damp issues from affecting your property in the future. We recommend using M10 or M12 shield anchors for a permanent, secure fix into masonry.
Levelling is where many projects fail. Your sub-frame needs a slight fall, typically 1 in 80, to prevent water pooling on the surface. Check your levels constantly as you progress. Before you think about laying the final boards, perform a final structural check. Walk across the joists to identify any bounce or movement. It’s much easier to add an extra noggin now than it is once the decking is screwed down.
Essential Tools for the Job
Professional-grade tools from brands like Ox and Spear & Jackson aren’t just for show. They provide the precision needed for a flat sub-frame. A high-quality spirit level, at least 1200mm in length, is vital for checking the fall across the entire span. Essex Board & Timber stocks structural screws designed specifically for treated timber. These won’t rust or snap when the wood naturally expands and contracts in the Essex climate.
The Bespoke Cutting Advantage
Our bespoke cutting service at Essex Board & Timber is a major time-saver for Braintree contractors. Ordering precise lengths of C24 carcassing reduces on-site waste and simplifies the build process. When handling treated timber, always wear appropriate PPE and ensure offcuts are disposed of according to local regulations. Cutting on-site often leads to exposed ends, so remember to treat any fresh cuts with an end-grain preservative to maintain the timber’s integrity and warranty.
Ready to start your build? Order your C24 joists online or visit our yard today to speak with the team.
Sourcing C24 Treated Timber from Essex Board & Timber in Braintree
Choosing the right supplier is as critical as selecting the timber grade itself. Essex Board & Timber operates as a dedicated independent merchant, offering a level of service that national chains often struggle to match. We maintain substantial stock levels of decking joists c24 braintree at our Bakers Lane facility, ensuring that trade professionals and DIYers don’t have to wait weeks for specialized structural components. Our independence allows us to prioritize quality control and provide a more personal, knowledgeable experience for every customer who walks through the gate.
Our yard is stocked with a wide range of lengths and sections, ready for immediate collection. For those requiring transport, Essex Board & Timber operates a reliable delivery fleet covering Braintree, Chelmsford, and the broader Essex region. We understand that construction schedules are tight. That’s why we focus on prompt turnarounds and accurate delivery windows. For larger landscaping developments or ongoing site work, opening a trade account with us provides access to competitive pricing structures and dedicated support, helping you manage project costs effectively from the ground up.
- Immediate availability of C24 structural timber in various lengths.
- Dedicated delivery vehicles serving Braintree and surrounding Essex towns.
- Trade account facilities for improved margins on large-scale projects.
- Independent service with a focus on product knowledge and reliability.
Visit the Braintree Yard
Located on Bakers Lane, our site is designed for efficiency. You’ll find a team with decades of combined experience in the timber industry, ready to assist with technical queries or loading. Whether you’re a contractor needing a bulk order of C24 timber or a homeowner planning a single deck, we provide the same level of professional guidance. It’s this commitment to service that makes us the first choice for those seeking timber merchants near me in the local area.
Complete Your Project
Essex Board & Timber isn’t just about structural carcassing. We provide everything required to finish a project to a high standard, including premium decking boards, heavy-duty fixings, and contemporary porcelain slabs. Our understanding of the Essex construction market means we stock the specific products that local builders prefer. If you’re looking for decking joists c24 braintree or need a comprehensive material list for a new build, contact the team today. We’ll provide a clear, transparent quote and help you get your project moving without delay.
Build a Braintree Decking Project That Lasts
Choosing the right materials is the most important step in any external construction project. C24 graded timber is the industry standard for a reason. It provides the superior strength and load-bearing capacity needed to withstand the damp Essex climate and the challenges of local clay soil. When you use high-quality decking joists c24 braintree, you’re investing in a sub-frame that won’t warp or fail under pressure. Proper joist spacing and professional-grade treated timber are the best ways to ensure your deck stays level and safe for decades.
Essex Board & Timber brings over 25 years of local merchant experience to your project. We’re an independent supplier that prides itself on reliability and technical expertise. Our on-site team offers a bespoke precision cutting service to meet your exact specifications, reducing waste and saving you time on the job. We’ve built our reputation on providing dependable stock levels and a swift delivery service that keeps your site moving without delays. Whether you’re a professional contractor or a serious DIYer, we have the stock and the knowledge to help you get the job done right.
Get a Quote for C24 Decking Joists at Essex Board & Timber
We look forward to helping you build a deck that stands the test of time.
Frequently Asked Questions
What is the difference between C16 and C24 decking joists?
C24 timber is significantly stronger and has fewer knots than C16 grade wood. It’s kiln-dried and graded for higher load-bearing capacities, making it the industry standard for structural decking. At Essex Board & Timber, we recommend C24 for larger spans or elevated decks because it offers superior stability. While C16 is cheaper, C24 provides the durability needed for long-term UK weather exposure and heavy foot traffic.
Can I use C24 joists for a ground-level deck in Braintree?
Yes, you can use C24 joists for ground-level decks, and they provide a much stiffer frame than lower grades. When installing decking joists c24 braintree projects often require this higher grade to prevent bounce on uneven garden ground. You’ll need to ensure you use UC4 treated timber for any wood in direct contact with the soil. Essex Board & Timber stocks various lengths to suit these specific local requirements and site conditions.
How far can a 4×2 C24 joist span without support?
A 47x100mm (4×2) C24 joist typically spans up to 2.47 metres when spaced at 400mm centres. This measurement follows TRADA guidelines for domestic floor loads and ensures a stiff, reliable frame. If you increase the spacing to 600mm, the clear span reduces to approximately 2.15 metres. Always consult a structural engineer for specific site calculations in the Essex area to ensure total safety and compliance.
Is all C24 timber at Essex Board & Timber pressure treated?
Most C24 timber stocked for external use at Essex Board & Timber is pressure treated to protect against fungal decay and insect attack. We supply green-treated carcassing specifically designed for outdoor structural applications like decking and pergolas. This treatment ensures the timber survives the damp UK climate over many years. Always check the specific product label or ask our trade counter team to confirm the treatment class for your order.
What spacing should I use for decking joists in an Essex garden?
Standard joist spacing for a domestic deck is 400mm centres, which provides a solid foundation for most timber and composite boards. If you’re using thinner boards or heavy planters, you should reduce this to 300mm centres for extra support. For trade customers in Braintree, we suggest 400mm as the reliable default for decking joists c24 braintree builds to ensure the structure feels solid and doesn’t flex underfoot.
Do I need to treat the ends of C24 joists after cutting them?
Yes, you must apply an end-grain preservative to any cut ends to maintain the integrity of the pressure treatment. Cutting timber exposes the untreated core, which is vulnerable to moisture, rot, and eventual structural failure. Essex Board & Timber stocks various end-grain treatments that you can apply quickly on-site with a brush. This simple step is vital for ensuring your deck frame lasts for its intended 15 to 20 year lifespan.
How much does delivery of C24 joists cost in Braintree?
Delivery costs for C24 joists depend on your order volume and the specific delivery zone within our Essex service area. We operate a fleet of vehicles equipped to handle large timber loads directly to sites in Braintree and surrounding villages like Rayne or Black Notley. For an accurate quote based on your postcode, contact the Essex Board & Timber sales team. We prioritise efficient turnarounds for our local trade account holders.
Can I use C24 timber for other garden structures besides decking?
C24 timber is an excellent choice for pergolas, gazebos, and heavy-duty garden workshops due to its high strength-to-weight ratio. Its superior load-bearing capacity makes it safer for roof structures and tall frames than standard C16 timber. Many of our customers across Essex use C24 carcassing for any project where structural integrity is a priority. It’s a versatile material that provides a professional, long-lasting finish for any outdoor build.
